Strong acid cation exchange resin

Strong acid cation exchange resin

Strong Acid Cation (SAC) resins are  polymer made by polymerizing styrene and divinylbenzene and sulfonating with sulfuric acid. Dongli company can provide gel and macroporous types SAC resins with different crosslink. Our SAC are available in many gradings including H forms, uniform size and food grade.

GC104, GC107, GC107B, GC108, GC110, GC116,  MC001, MC002, MC003


Product Detail

Product Tags

Strong Acid Cation Resins

Resins Polymer Matrix  Structure                   Whole Beads   FunctionGroup Ionic Form  Total Exchange Capacity (meq/ml in Na+  ) Moisture Content as  Na+ Particle Size mm SwellingH→Na Max. Shipping Weight g/L
GC104 Gel Poly-styrene with DVB   95% R-SO3 Na+/H+ 1.50 56-62% 0.3-1.2

10.0%

800
GC107  Gel Poly-styrene with DVB 95% R-SO3 Na+/H+ 1.80 48-52% 0.3-1.2

10.0%

800
GC107B Gel Poly-styrene with DVB 95% R-SO3 Na+/H+ 1.90 45-50% 0.3-1.2

10.0%

800
GC108 Gel Poly-styrene with DVB 95% R-SO3 Na+/H+ 2.00 45-59% 0.3-1.2

8.0%

820
GC109 Gel Poly-styrene with DVB 95% R-SO3 Na+/H+ 2.10 40-45% 0.3-1.2

7.0%

830
GC110 Gel Poly-styrene with DVB 95% R-SO3 Na+/H+ 2.20 38-43% 0.3-1.2

6.0%

840
GC116 Gel Poly-styrene with DVB 95% R-SO3 Na+/H+ 2.40 38-38% 0.3-1.2

5.0%

850

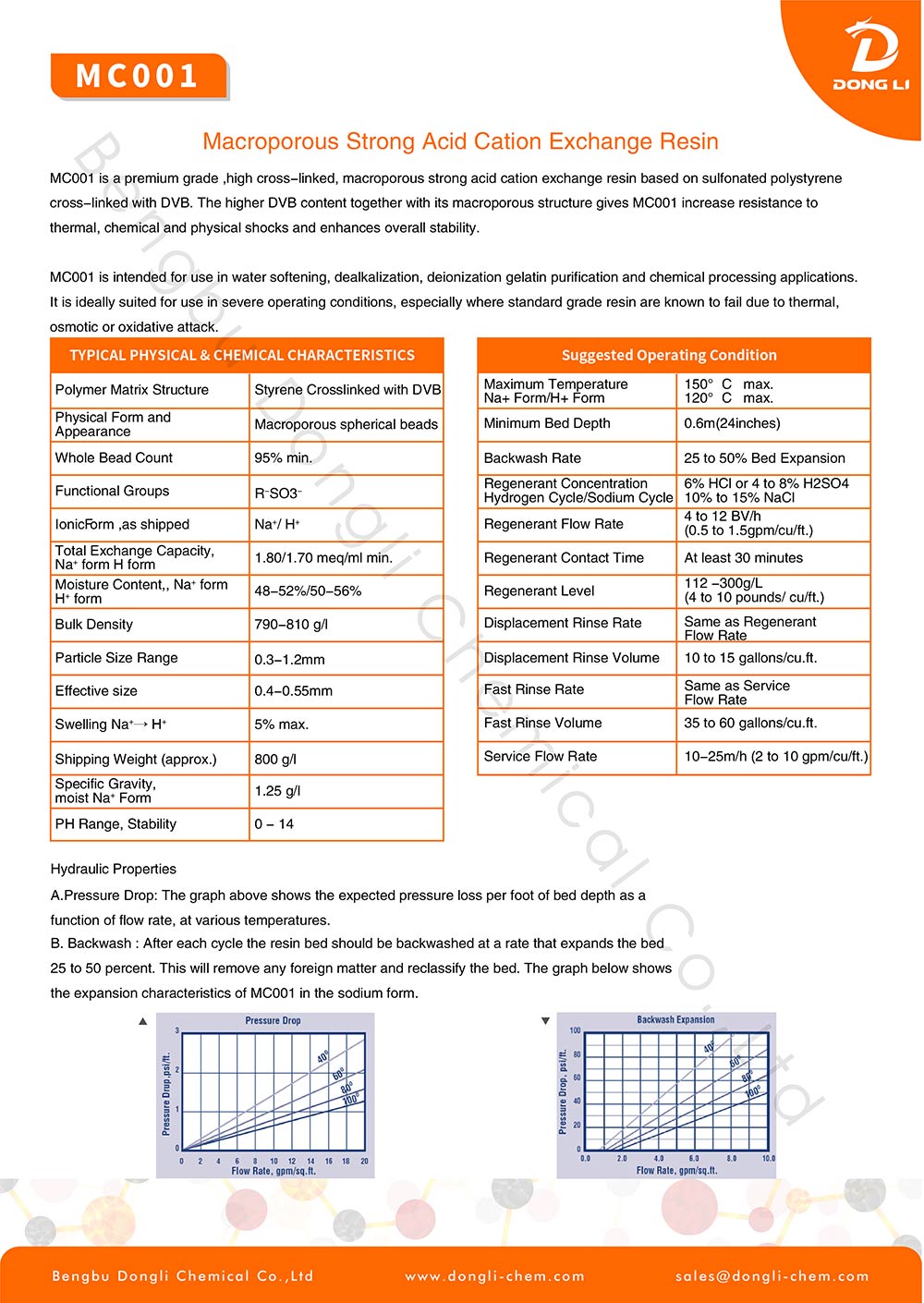

MC001 Macroporous Poly-styrene with DVB 95% R-SO3 Na+/H+ 1.80 48-52% 0.3-1.2

5.0%

800
MC002 Macroporous Poly-styrene with DVB 95% R-SO3 Na+/H+ 2.00 45-50% 0.3-1.2

5.0%

800
MC003 Macroporous Poly-styrene with DVB 95% R-SO3 Na+/H+ 2.30 40-45% 0.3-1.2

5.0%

800
cation-resin4
cation resin1
cation-resin5

Strong Acid Cation

Strong acid exchange resin is a kind of cation exchange resin with sulfonic acid group (- SO3H) as the main exchange group, which can be reused.

The use of ordinary mineral acids is the same. The type of softened water resin is strong acid ion exchange resin. The special catalyst type resin must be used, because it is also related to the influence of hydrogen ion release rate, pore size and crosslinking degree on the reaction.

In industrial application, the advantages of ion exchange resin are large treatment capacity, wide decolorization range, high decolorization capacity, removal of various ions, repeated regeneration, long service life and low operation cost (although the cost of one-time investment is large). A variety of new technologies based on ion exchange resin, such as chromatographic separation, ion exclusion, electrodialysis, etc., have their own unique functions and can carry out various special work, which is difficult to do by other methods. The development and application of ion exchange technology is still developing rapidly.

Note

1. Ion exchange resin contains a certain amount of water and should not be stored in the open air. During storage and transportation, it should be kept moist to avoid air drying and dehydration, resulting in broken resin. If the resin is dehydrated during storage, it should be soaked in concentrated salt water (10%) and then diluted gradually. It should not be directly put into water to avoid rapid expansion and breakage of resin.

2. During storage and transportation in winter, the temperature should be kept at 5-40 ℃ to avoid supercooling or overheating, which will affect the quality. If there is no thermal insulation equipment in winter, the resin can be stored in salt water, and the concentration of salt water can be determined according to the temperature.

3. The industrial products of ion exchange resin often contain a small amount of low polymer and non reactive monomer, as well as inorganic impurities such as iron, lead and copper. When the resin is in contact with water, acid, alkali or other solutions, the above substances will be transferred into the solution, affecting the quality of the effluent. Therefore, the new resin must be pretreated before use. Generally, the resin is fully expanded with water, Then, the inorganic impurities (mainly iron compounds) can be removed by 4-5% dilute hydrochloric acid, and the organic impurities can be removed by 2-4% dilute sodium hydroxide solution. If it is used in pharmaceutical preparation, it must be soaked in ethanol.
