MC001 Macroporous Strong Acid Cation Exchange Resin

D001 is a premium grade ,high cross-linked, macroporous strong acid cation exchange resin based on sulfonated polystyrene cross-linked with DVB, The higher DVB content together with its macroporous structure gives D001 increase resistance to thermal, chemical and physical shocks and enhances overall stability.

D001 is intended for use in water softening, dealkalization, deionization gelatin purification and chemical processing applications. It is ideally suited for use in severe operating conditions, especially where standard grade resin are known to fail due to thermal, osmotic or oxidative attack.

Send email to us

Product Detail

Product Tags

Typical physical & Chemical characteristics

Polymer Matrix Structure______________	Styrene Crosslinked with DVB
Physical Form and Appearance__________	Macroporous spherical beads
Whole Bead Count___________________	95% min.
Functional Groups____________________	R-SO3¯
Ionic Form ,as shipped________________	Na⁺
Total Exchange Capacity, Na+ form, wet,volumetric___________________	1.90 meq/l min.
Moisture Retention, ___________	50-55%
Bulk Denisty	800-900 g/l
Particle Size Range___________________	0.6-1.2mm
Effective size	0.4-0.5mm
Swelling Na⁺→ H⁺___________________	5% max.
Shipping Weight (approx.)_____________	800 g/l
Specific Gravity, moist Na⁺ Form_______	1.25
PH Range, Stability___________________	0 – 14

Suggested Operating Condition

Maximum Temperature Na⁺ Form__________________H⁺ Form__________________	150°C max.120°C max.
Minimum Bed Depth_________________	0.6m(24inches)
Backwash Rate______________________	25 to 50% Bed Expansion
Regenerant Concentration Hydrogen Cycle___________Sodium Cycle_____________	6% HCl or 4 to 8% H₂SO₄10% to 15% NaCl
Regenerant Flow Rate ________________	4 to 12 BV/h (0.5 to 1.5gpm/cu/ft.)
Regenerant Contact Time _____________	At least 30 minutes
Regenerant Level ____________________	112 -300g/L (4 to 10 pounds/ cu/ft.)
Displacement Rinse Rate ______________	Same as Regenerant Flow Rate
Displacement Rinse Volume ___________	10 to 15 gallons/cu.ft.
Fast Rinse Rate ______________________	Same as Service Flow Rate
Fast Rinse Volume ___________________	35 to 60 gallons/cu.ft.
Service Flow Rate ___________________	10-25m/h (2 to 10 gpm/cu/ft.)

Hydraulic Properties

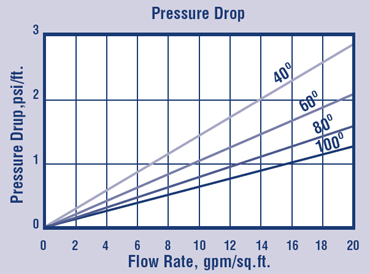

A. Pressure Drop: The graph above shows the expected pressure loss per foot of bed depth as a function of flow rate, at various temperatures.

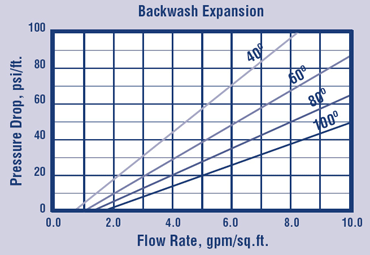

B. Backwash : After each cycle the resin bed should be backwashed at a rate that expands the bed 25 to 50 percent. This will remove any foreign matter and reclassify the bed. The graph below shows the expansion characteristics of D001 in the sodium form.
